THE NEXT GENERATION OF
ROBOTIC MANIPULATION

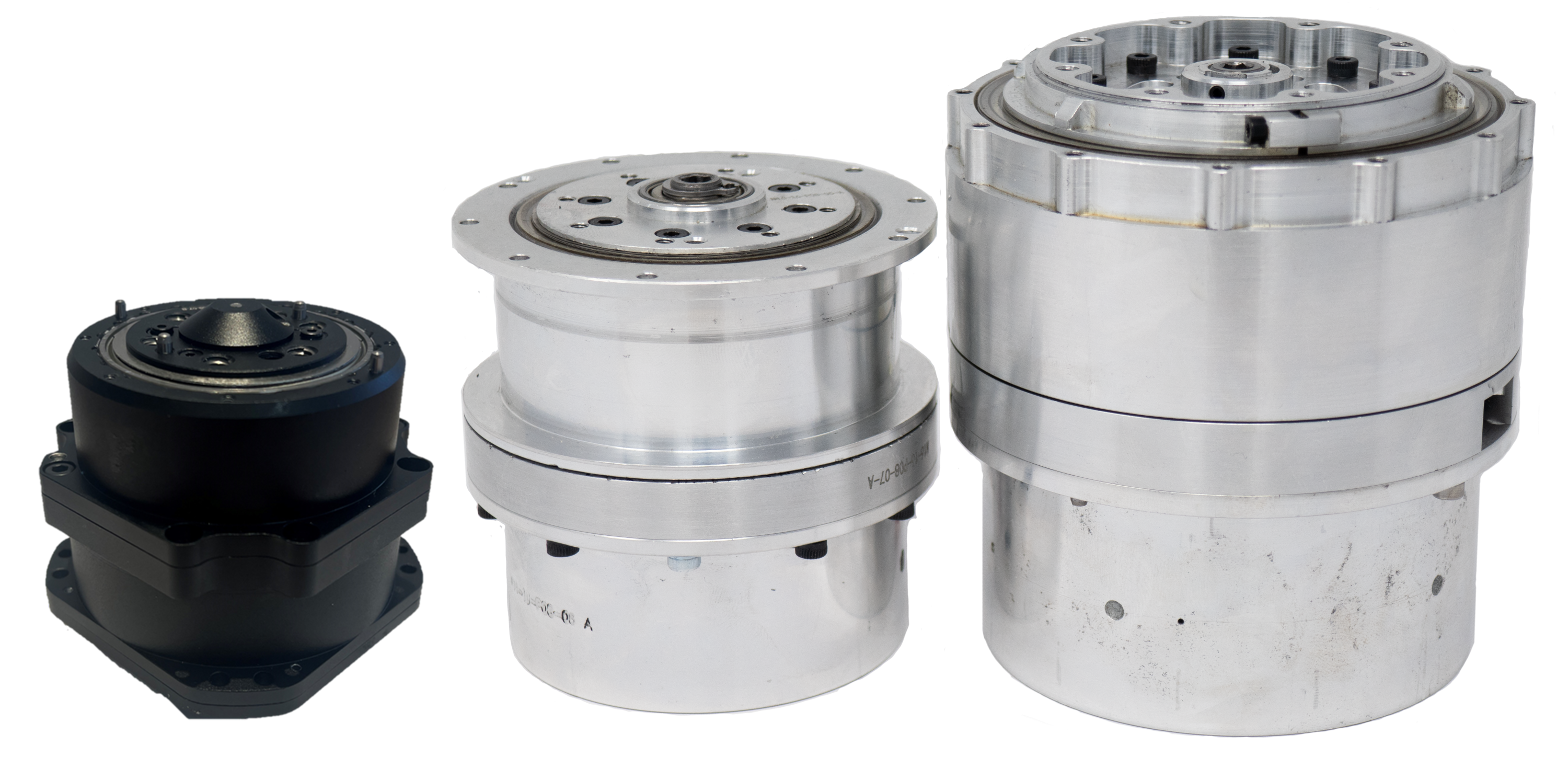

| Small BC-S19-60T |
Medium BC-M20-68T |
Large BS-L20-85T |
|
|---|---|---|---|
| Continuous Torque (Nm) |
9 | 21 | 49 |
| Peak Torque (Nm) |
20 | 80 | 180 |
| Gear Ratio | 19:1 | 20:1 | 20:1 |
| Output Speed (rad/s @48V) | 9.0 | 12.0 | 9.0 |
| Housing Diameter (mm) |
63 | 84 | 100 |
|
Housing Length (mm)
|
63.5 | 82 | 107 |
| Weight (g) | 520 | 1100 | 2100 |
